Sturmgewehr 44 / MP 44



Disassembly - continuation





First the sling has to be removed

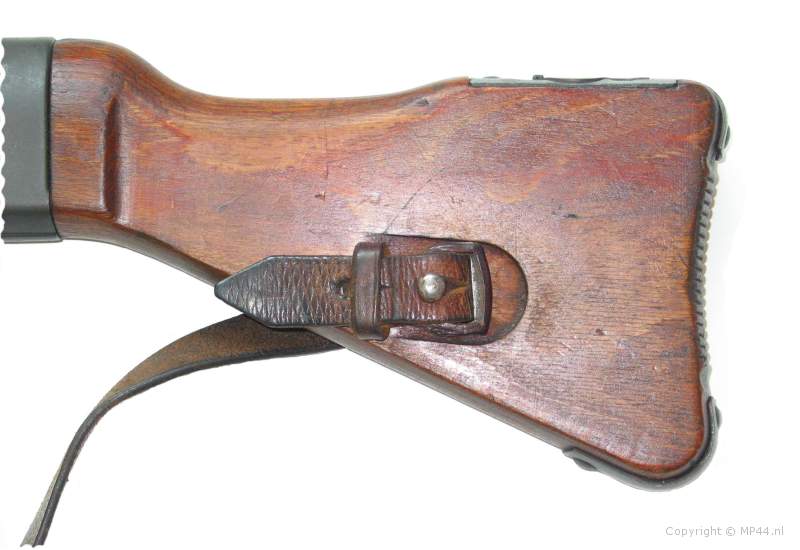

Remove the sling from the "keeper" (Frosch) and pull the sling through the rifle butt stock

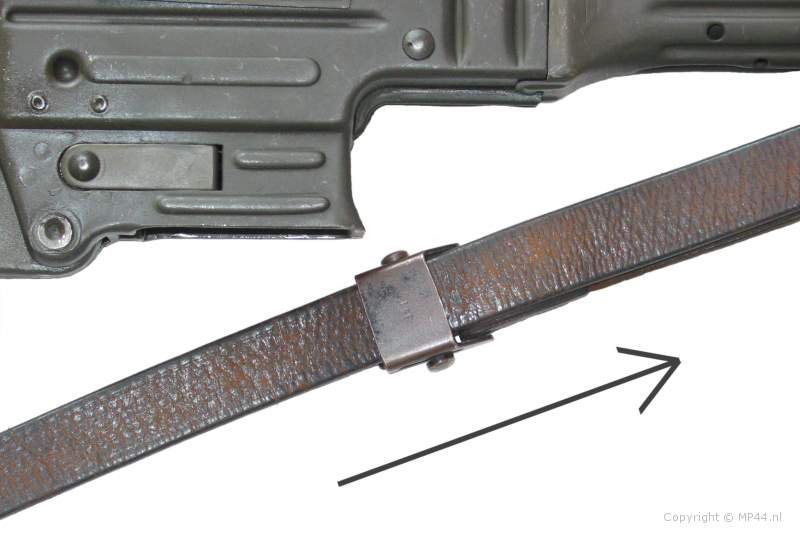

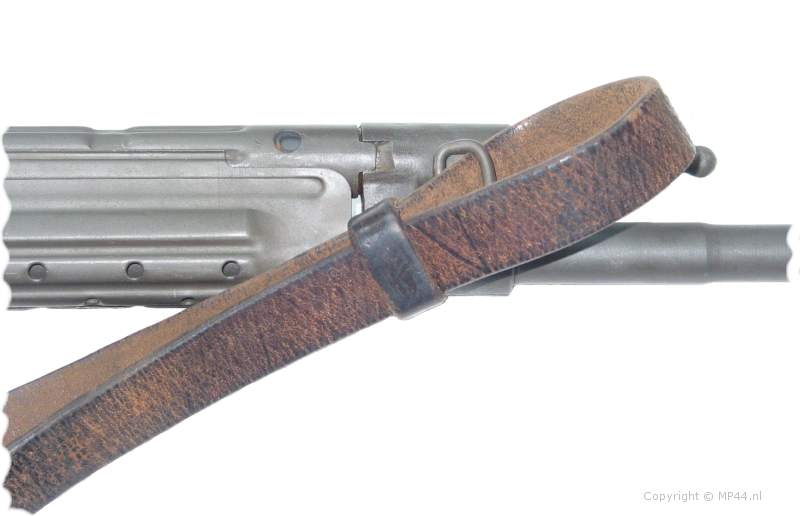

Now pull the sling through the buckle

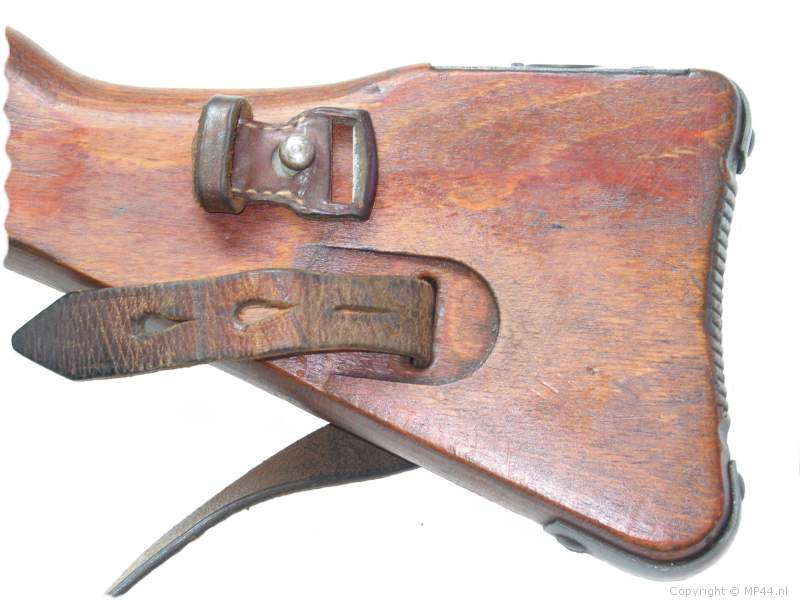

Now pull the sling through the sling loop









The sling can now be removed from the MP

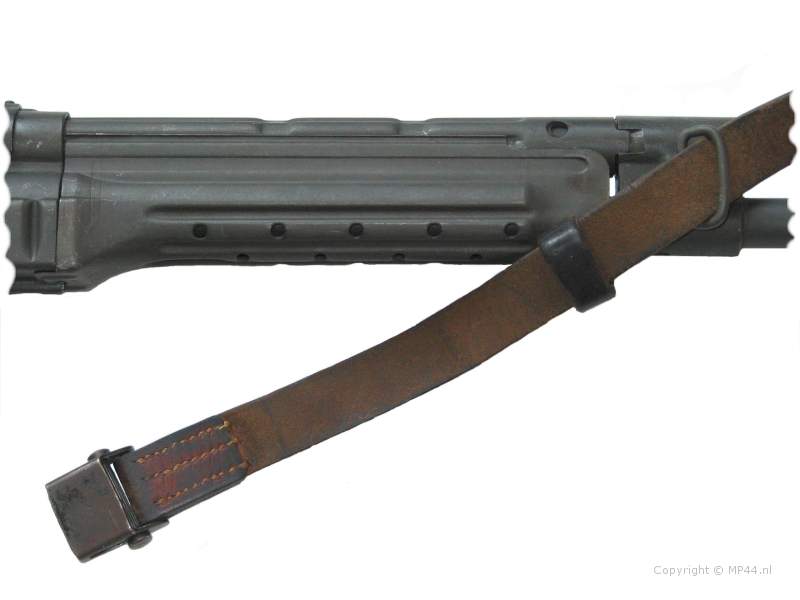

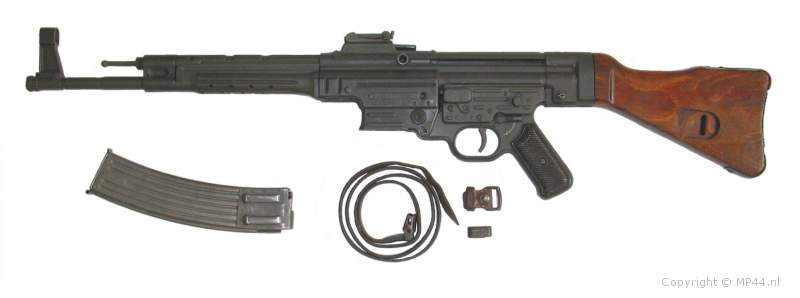

Below the MP44 is shown with removed magazine and removed sling









The disassembly can be continued

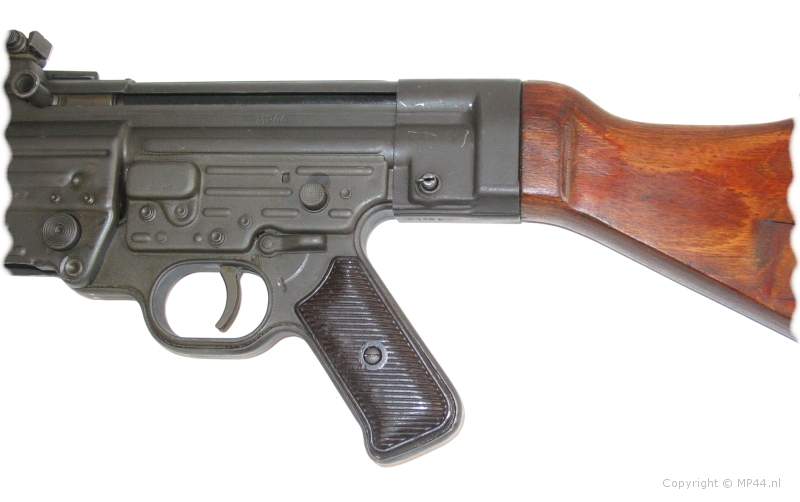

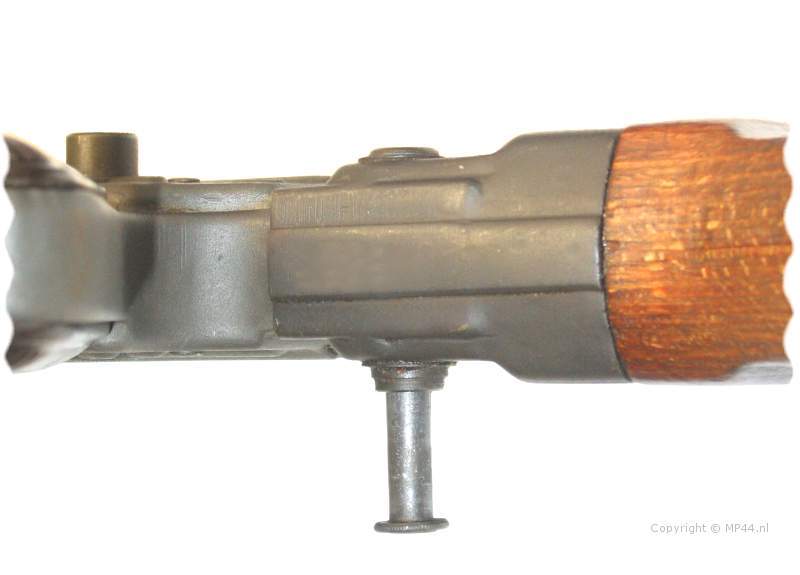

First the butt stock can be removed by pulling the retaining pin out.

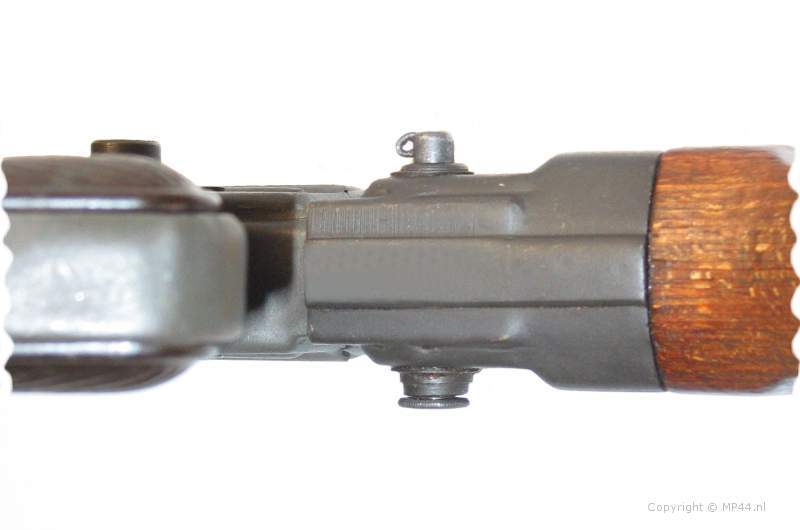

Below, the underside of the MP44 is shown













Be sure to hold the butt stock, because of the recoil spring.

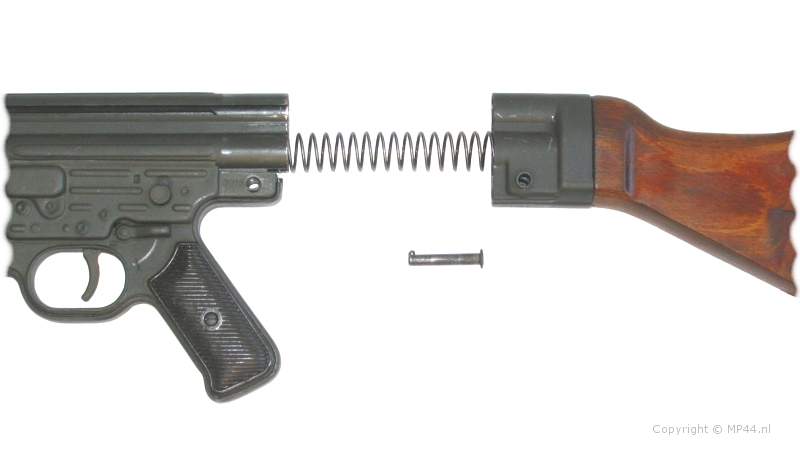

Below, the MP44 with removed butt stock and recoil spring.

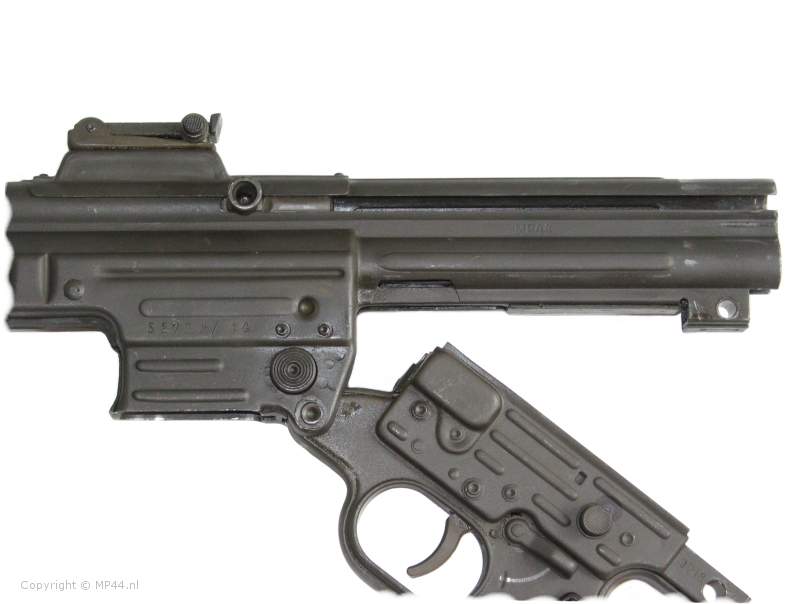

Note how the pistol grip swivels.

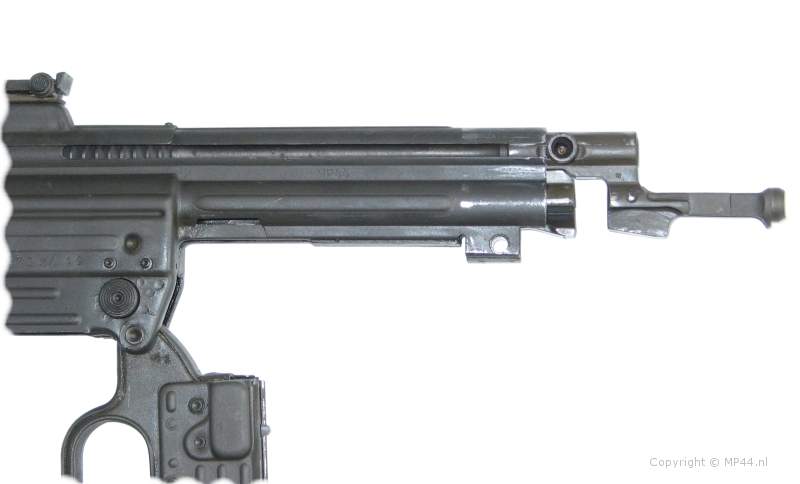

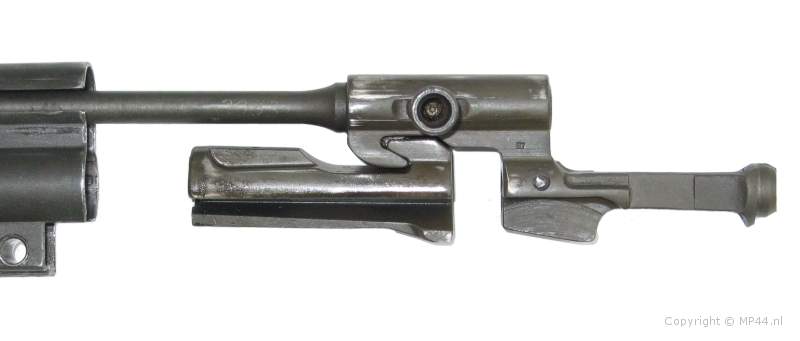

The Gas piston with bolt carrier and bolt now can be removed by pulling them out

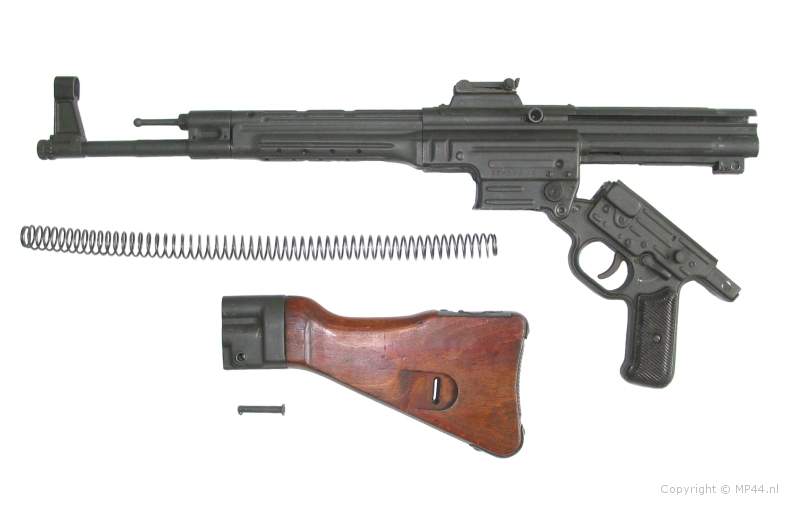

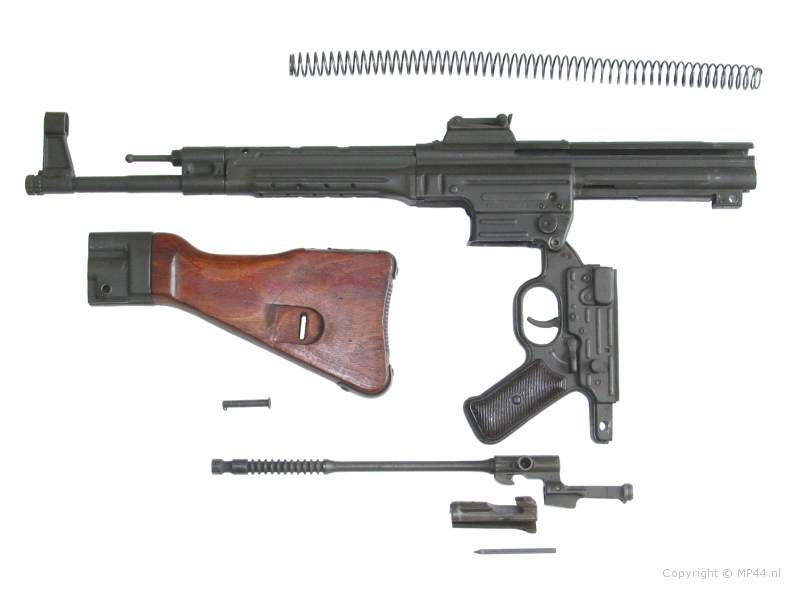

Below: The MP44 is now completely disassenbled
