German Weapons

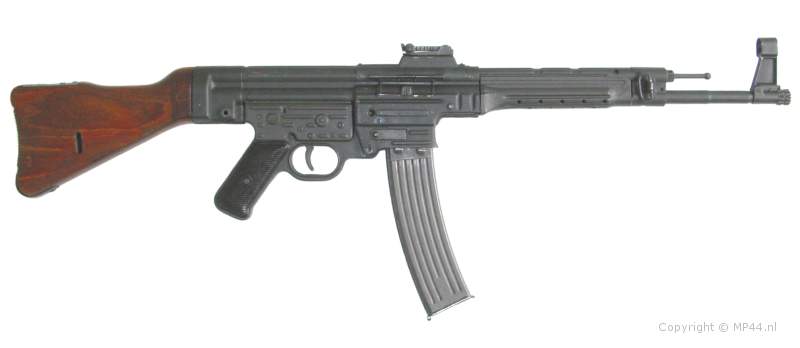

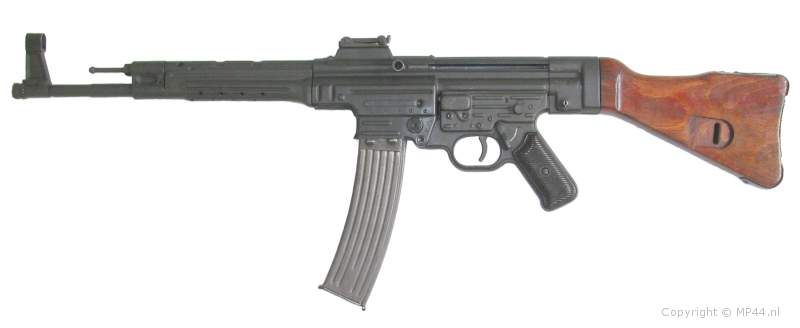

Sturmgewehr 44 / MP 44



This article contains technical info, disassembly info, and some info on manufacturers codes.













Technical Data

Caliber: 7,92 x 33 Kurz Patrone
Magazine capacity: 30 rounds
Muzzle velocity (V0): 690m/s
Length: 940 mm
Barrel Length: 418 mm
Barrel Groove & Twist: 4 grooves, right hand twist
Weight (without magazine): 4,62 kg
Weight of loaded magazine: 0,92 kg





Below, some detail pictures

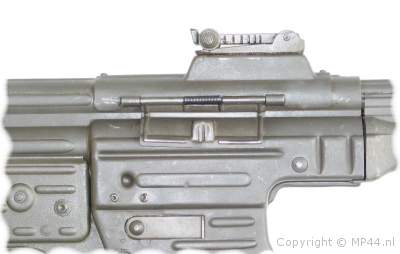

MP44 in "transport" mode:

Dust cover closed

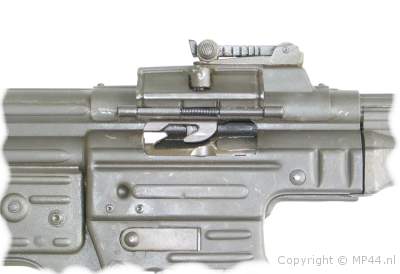

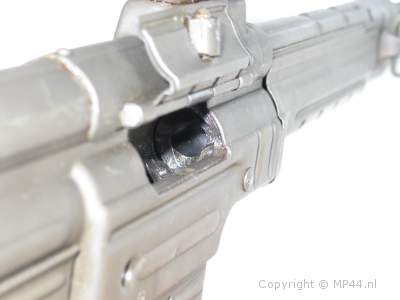

MP44 in "ready to fire" mode:

Dust cover is open.

Whenever the MP is loaded, the dust cover
opens automatically.

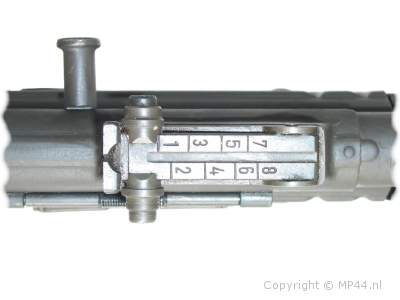

Top view of the V-notch sight.

The range is from 100 - 800 metres.

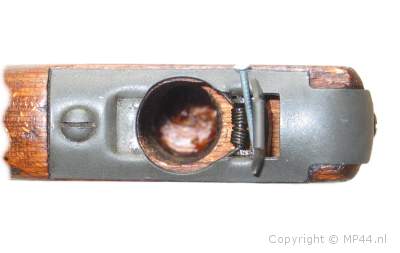

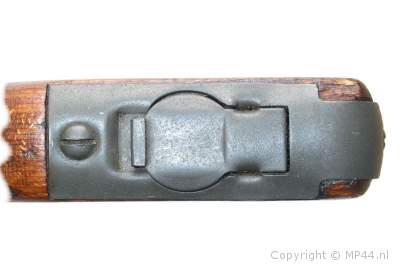

Top view of the butt stock.









Top view with shows the space for the tools
and instruction booklet.

tools:

brush for gas tube
disassembly tool



Manufacturers codes.

Since the MP44 consisted of all kind of machined parts, there were also a lot of different manufacturers involved.

The following main manufactureres codes can be found:



Assembling Companies:

fxo - C.G. Haenel, Waffen- u. Fahrrad-Fabrik, Suhl
ce - J.P. Sauer & Sohn, Gewehrfabrik, Suhl
bnz - Steyr-Daimler-Puch A.G., Werk Steyr
qlv - Erma (not mentioned in the German Code Book)





Disassembly - Safety !!!!

Before disassembling the MP44 allways take the following safety precautions:

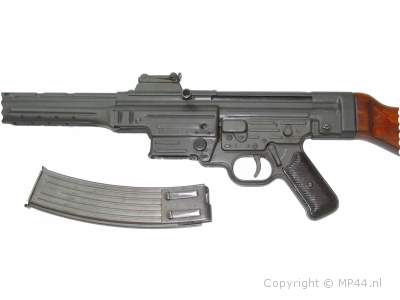

1 - Remove the magazine.

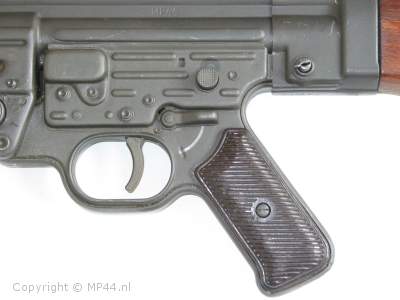

2 - Set the safety lever on (S)afe.











3 - Check the chamber for cartridges.





Disassembly - continuation
